Tuesday, November 26, 2013

Would you like to have Smart Home?

http://www.smarthomebus.com (Home Automation Control DRP System)
http://www.sunseeker.me (Motorized Shades, Drapes & Lifts)
http://www.zone-audio.com (Multi-room Distributed Audio System)
http://www.resound.me (Theatre Art Speaker and Garden Hi-end Autosystem)
http://www.oursmartwall.com (Specialized in Automation and A&V Industry Social)

Sunday, November 24, 2013

Smartbus G4 IPL Gateway for Home Automation,Smart Home

IPL Gateway

Remotely CONTROL
Remotely MONITOR
Remotely PROGRAM

IPL Gateway Features:
Security Enabled (Password)
Logic Bulletin
MAC Address verifiable
Static + Dynamic DNS
S-BUS Ready
UDP/TCP/ RS-232/RS-485
2D Barcode Included

The new IPL is like no other:
Control your systems from anywhere using 3G/Wi-Fi/LAN/WAN/Web
Secure & Password Enabled
Built-in Logic & Security Functions
TCP/UDP/DHCP/RS-232/ RS-485 Enabled
Watch Dog

Download:
http://smarthomebus.com/dealers/Catalogues/flyers/IPL%20Gateway%20Flyer%20v3.1.pdf

Smart-Bus G4 New Products Smart Power Strip 8 For Lighting Control,Home Automation,Smart Home

Friday, November 22, 2013

Smart-Bus G4 Products for Lighting Control,Home Automation,Control Panels,Control System,Smart Home.

Thursday, November 21, 2013

That's Amazing Smart Multifunction Power Extention. Done by Smart-Bus G4. You like it? www.smarthomebus.com

Wednesday, November 20, 2013

Australia and shenzhen partners visiting smart industry. More information, welcome to visit www.smarthomebus.com

Tuesday, November 19, 2013

How to Remove the Magnet at the Back of Smart Hotel Door Bell Panel

Steps

 1- Unscrew all the sides of the Door Bell Panel

 2- Remove the back cover of the Door Bell Panel

 3- Push using screw driver between the PCB and the back cover

lock to separate the PCB and the back cover.

 4- Then the back cover and PCB is separated.

 5- At the back cover, push the magnet using the screw driver.

 6- Only remove the one magnet on the corner near to USB

Upgrade, so that it will not make noise.

- Once the magnet is removed. We can return back the cover of Hotel Door Bell Panel and screw it again. Now its done.

Helpful?

Saturday, November 16, 2013

Friday, November 15, 2013

How to install Smartbus DDP.

Introduction:
- The DDP (Dynamic display panel) is the primary user interface devices in the Smart-BUS G4 System
- In DDP you can control the entire house, all systems, refer to programing manual.

The DDP can be easily fixed on 3X3 back box.

Like any other device the DDP should be connected to the S-BUS
network. And that is done using the 4D connector (Refer to S-BUS
connection installation manual)

The DDP has an extra small device which is the IR eye, this device is
optional, and can be connected to the DDP to enable it to receive IR
commands from the Smart Remote.

Thursday, November 14, 2013

How to Install Smartbus 4 Zone Dry Input Moudle

Introduction:
The S-BUS G4 4Z Module is the bridge device between the S-BUS network and the Dry
contact environment. Where it reads the information from any Dry-Contact device and by
configuration and programming can act upon the readings.
The 4Z module is installed to the S-BUS network like any other device.

Various of sensors for may of purposes in the market with the dry contact Nature. They can be connected to the 4Z DRY INPUT ports as shown in the picture on the right.
Z1, Z2, Z3, Z4 are the zone ports where the sensors first wire should be connected, and the second wire should be connected to the COM port which common to all zones.

Connecting multiple sensors to one Zone:
The diagram on the right shows multiple
Sensors connected in series to only one zone.
Depending on the application required, by connecting the
Sensors in series means that all the sensors have to be CLOSED
In order for the 4Z to read it as CLOSED, and only one OPEN
Would cause the reading to be OPEN.

Connecting in parallel means that if any of the sensors
Went CLOSED the reading will be CLOSED while all Sensors have
To OPEN in order for the reading to be OPEN.

Like the famous logic relations AND, OR where the In Series represent AND and in Parallel represent OR.

Wednesday, November 13, 2013

Smart Bus Hotel Demo Bag

Specifications

Smart Hotel Demo Bag for Hotel Automation for presentation on how our system works in a portable bag.

SMART HOTEL DEMO BAG INCLUDE:

(1) HAUX Power
(1) Zmix23
(1) 3SCARD
(1) Hotel Card Holder
(1) Bedside Controller
(1) 3SBXS
(1) DDP
(1) 2A Power Supply
(1) Ireye
(5) 4D Connect
(1) Mag3
(1) Remote
(1) LED Bulb
(1) Acrylic Board

Smart Bus SOHO Demo Bag

Specifications

Smart SOHO Demo Bag for Home Automation for presentation on our system works in a portable bag.

SMART SOHO DEMO BAG INCLUDE:

(1) 9 in 1
(1) DDP
(1) 4Z
(1) Zaudio
(1) SB-ZA/EPS-FL
(1) Mix23
(1) LED Driver
(1) LED PS
(1) Mini S/F
(1) 4GB-SD Card
(1) 2A Power Supply
(1) Ireye
(1) Mag2
(1) Remote
(1) WIFI Router
(3) LED Bulb
(1) Mini Speaker
(1) LED Strip
(1) Acrylic Board
(4) Bulb
(1) Switch
(4) Screw
(1) Demo Bag

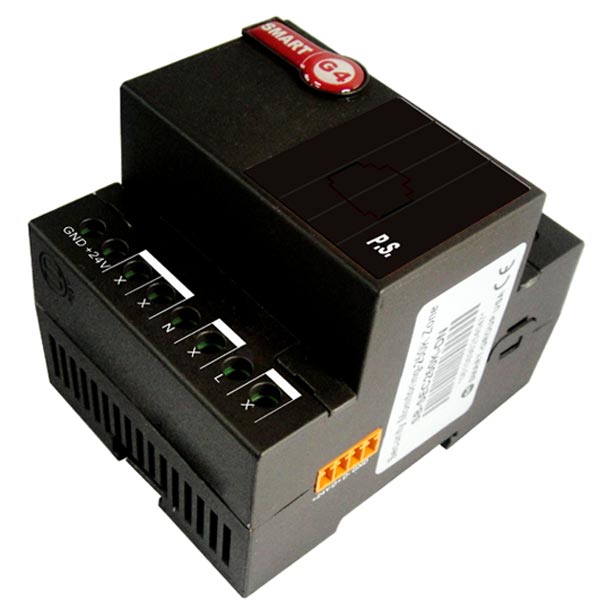

Smart-BUS G4 Ready Power Supply 24VDC x 630mA DIN-rail

Description
This is a state of ART technology DC Power Supply with UL, with CE & RS Compliance.
This power supply is both DIN-Rail Mount and Wall Mountable.
This Power Supply is S-BUS Ready and Accept S-BUS Train Assembly connection.

Examples 24VDC Power Supply Needs
Medical Equipment and Application Compliant

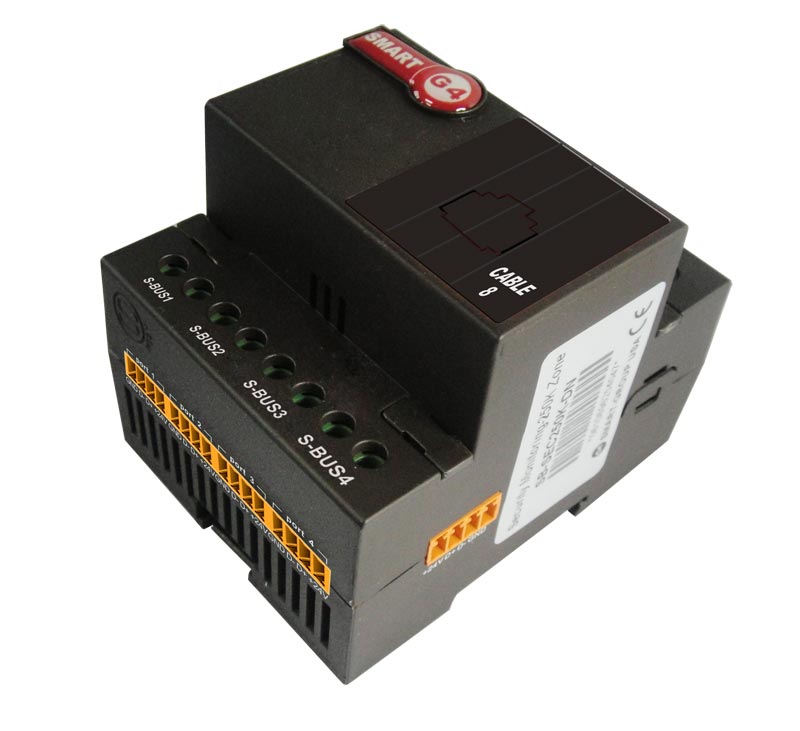

Smart-Bus 8 Port Cable Manager DIN

Description
S-BUS Ready Cable Manager to Help Organize cabling Between Zones/Floors in Professional and Easy to Maintain and Diagnose method. This Module Accept S-BUS Train Assembly connection and can be cascaded accordingly to multiply the Number of Ports by 8-Ports per Cascade Module added.

Applications
• 24VDC Power Supply Needs
• Medical Equipment and Application Compliant

Smart-Bus Hybrid Integration Link with IP

Description
DIN-Rail Mount, PC/IP Interface and 3rd Party Integration RS-232 & RS-485. This Module is multi Purpose, it can be used for programming S.BUS, and a bridge between computer Smart-BUS network, can also be used as network bridge in the big projects with thousands of devices. It is the Touch Screen to SBUS bridge. Same device is used
for 3rd Party Integration. Can send more than 1980 ASCII and/or Hexadecimal Command with 50 ASCII Character Message Length for more flexibility. 2 way communication that can receive up to 99 ASCII,HEX string commands to do up to 20 different commands for each message received Fixed ASCII S-BUS Protocol with Send Command Delay option Adjustable baud rate
**Added function: Improved String Length.

3rd Party Compatibility
• Lighting
• DVD's
• Media
• Curtains
• Security
• Music
• Lifts
• Projector
• Access
• Fire
• Weather
• HVAC
• TV
• RFID
• W-BUS

Connection Port:

Smart Hotel, Front Desk Card Management check in Out Story, Smart-BUS G4 GRMS Hotel Automation.

Monday, November 11, 2013

Auxiliary Hotel Room Power Master

Description
Auxiliary Hotel Room Power Master to connect to Simplified Energy Master Control Switch, Including 15A Master Cutoff Relay and Door Bell 220V output Trigger, also is considered the Power Supply 24VDC for Hotel GRMS.

Microwave PIR Sensor (G4) - (2in1)

Description
Microwave Sensor motion sensing utilizes Dual Sensor Technology: 1 MicroWave Detector (Forward wide field view) and 3 Passive Infrared (PIR)
Sensors that overlap their detection fields to create a 180 degree "semicircle" around the Microwave Sensor. This dual and overlapping system provides full and "Instant On" activation of the RAIDD Door Defense System at the 1st sign of any intruder within the protected sensor zone.

Control Compatibility
• Security
• Safety
• Maintenance
• Health
• Automation

Microwave PIR Sensor (G4) - (2in1) - SB-MW2in1-WL

WHY G4 (GENERATION-4) IS BETTER? 9IN1 SENSOR, 6IN1, 5IN1

9in1 Sensor, 6in1 Sensor (Features compared)	Old Smart-BUS	New S-BUS G4
Easy To Open and close without stocking	Difficult	Easy
Easy Twist and Screw Installation Simplicity	Not Available	Available
Ability to Snap Connect/Disconnect Cables	Not Possible	Snap In Connector
Electronic Board can Be easily removed and protected till Installation Time, while base and connectors remain	Not Possible	Possible
Upgrading the Device Made Easy	Difficult	By Mini USB
Temperature Sensor Built in and Can Link to HVAC2	Not Available	Available
Unified Milky White Color that dissolve into ceiling without the Brown IR Emitter ring cover 9Avoided)	Not Available	Available
Advanced cable Run Design to accommodate Finished Installation Needs at Concreted Ceiling Homes	Not Available	Available
Easy Backup and Restore using Configuration SW	Not Available	Available
Work on Both BUS and Cloud Technology	Not Possible	Possible
Advanced Spacing and Isolation to avoid Electromagnetic Field false Signaling	Not Available	Available
well designed Air cooling Vents at base of Module	Standard	Advanced, Double efficiency
Genuine Patent and Brand Embedded into all Parts and Plastics	Not Available	Available
Genuine Product Barcode GTIN, and Holographic Label Distinguisher	Not Available	Available
All Other Standard Smart-BUS Advanced Automation Features	Included	Included

PIR Motion sensor (Simplified)

Description
Bus Enabled. Addressable Ceiling Mountable PIR sensor. It was designed perfectly for Automation Industry techno-lifestyle needs. This device contains: addressable PIR sensor, one output which indicate the state of the PIR sensor (you can use this output to drive the lamp, relay also some other device you like) and a 5v power supply output.
** Added function: Easy S-BUS Connectors, mini USB firmware upgrade port, & Advanced mechanical design and size to fit ceiling boxes twist in..

Control Compatibility
• Security
• Safety
• Maintenance
• Health
• Automation

WHY G4 (GENERATION-4) IS BETTER? 9IN1 SENSOR, 6IN1, 5IN1

9in1 Sensor, 6in1 Sensor (Features compared)	Old Smart-BUS	New S-BUS G4
Easy To Open and close without stocking	Difficult	Easy
Easy Twist and Screw Installation Simplicity	Not Available	Available
Ability to Snap Connect/Disconnect Cables	Not Possible	Snap In Connector
Electronic Board can Be easily removed and protected till Installation Time, while base and connectors remain	Not Possible	Possible
Upgrading the Device Made Easy	Difficult	By Mini USB
Temperature Sensor Built in and Can Link to HVAC2	Not Available	Available
Unified Milky White Color that dissolve into ceiling without the Brown IR Emitter ring cover 9Avoided)	Not Available	Available
Advanced cable Run Design to accommodate Finished Installation Needs at Concreted Ceiling Homes	Not Available	Available
Easy Backup and Restore using Configuration SW	Not Available	Available
Work on Both BUS and Cloud Technology	Not Possible	Possible
Advanced Spacing and Isolation to avoid Electromagnetic Field false Signaling	Not Available	Available
well designed Air cooling Vents at base of Module	Standard	Advanced, Double efficiency
Genuine Patent and Brand Embedded into all Parts and Plastics	Not Available	Available
Genuine Product Barcode GTIN, and Holographic Label Distinguisher	Not Available	Available
All Other Standard Smart-BUS Advanced Automation Features	Included	Included

Smart-Bus 3 Button Switch Wall Panel

Description
Elegant and easy to use wall panel that is soft programmed to enable control of lights, curtains, service++ the 3 Button switch has easy fascia color and material changing flexibility to help match any interiors. It has screw less mounting mechanism, security lock, easy upgrade mini-USB, re-locatable IR receiver probe, LED backlit buttons.
**Added function: Bigger buttons, Elegant aluminum surround and buttons, mini USB firmware upgrade port, easy connectors. Security lock screw to prevent vandalism, two sided button operation.

Control Compatibility
• Lighting
• Music
• Curtains
• Moods
• Security
• Service
• Color
• Drapes
• Pumps
• Gates

WHY G4 (GENERATION-4) IS BETTER? DDP, FDP, 6B, 4B, 3B

Switches and wall panels (Features compared)	Old Smart-BUS	New S-BUS G4
Buttons and Surround Finish Material Improvement	Plastic	Aluminum
Glass Material Improvement	Thick & Bulky	I Phone Quality 0.8mm Glass
Back Module Size	Do not Fit all Countries	Fits all countries
Upgrading without opening the Device	Not Possible	By Mini USB
Ability to Snap Connect/Disconnect Cables	Not Possible	Snap In Connector
Ability to Locate IR receiver nearer to user location	Not Possible	Flexible with Snap in Connector
PCB Electronics Design Complexity	2 Complex Boards	Single simple Board
User Graphics Interface	Standard	Improved Icons
Integration to Z-Audio with auto update	Manual	Advanced Auto
Fixed Display Panel (FDP)	Not Available	Available
Easy Backup and Restore using Configuration SW	Not Available	Available
Work on Both BUS and Cloud Technology	Not Possible	Possible
Buttons Size and Workability of Soft switches (1-6 Gang)	Smaller, single side operation	Wider and Bigger with Both sides Operation
Panels Security not to be simple to remove from wall	Not Secure	Secured by Clamps, Magnets, and screw Locks
Metal Plate Twist and Screw Installation Simplicity	Not Possible	Possible
Design Standards	Asian Curved Design	Modern European Touch
Anti static Electricity Grounding and discharge	Not Part of Original Design	Embedded and Implemented in Design
Programming and Pairing Manually to Lighting, Dimming, HVAC, and Music	Not Possible	Easy
Flexible Fascia changing (many varieties)	Difficult, Very Thick	Easy
All Other Standard Smart-BUS Advanced Automation Features	Included	Included

Smart-Bus 4 Button Switch Wall Panel

Description
Elegant and easy to use wall panel that is soft programmed to enable control of lights, curtains, service++ the 4 Button switch has easy fascia color and material changing flexibility to help match any interiors. It has screw less mounting mechanism, security lock, easy upgrade mini-USB, re-locatable IR receiver probe, LED backlit buttons.
**Added function: Bigger buttons, Elegant aluminum surround and buttons, mini USB firmware upgrade port, easy connectors. Security lock screw to prevent vandalism, two sided button operation.

Control Compatibility
• Lighting
• Music
• Curtains
• Moods
• Security
• Service
• Color
• Drapes
• Pumps
• Gates

WHY G4 (GENERATION-4) IS BETTER? DDP, FDP, 6B, 4B, 3B

Switches and wall panels (Features compared)	Old Smart-BUS	New S-BUS G4
Buttons and Surround Finish Material Improvement	Plastic	Aluminum
Glass Material Improvement	Thick & Bulky	I Phone Quality 0.8mm Glass
Back Module Size	Do not Fit all Countries	Fits all countries
Upgrading without opening the Device	Not Possible	By Mini USB
Ability to Snap Connect/Disconnect Cables	Not Possible	Snap In Connector
Ability to Locate IR receiver nearer to user location	Not Possible	Flexible with Snap in Connector
PCB Electronics Design Complexity	2 Complex Boards	Single simple Board
User Graphics Interface	Standard	Improved Icons
Integration to Z-Audio with auto update	Manual	Advanced Auto
Fixed Display Panel (FDP)	Not Available	Available
Easy Backup and Restore using Configuration SW	Not Available	Available
Work on Both BUS and Cloud Technology	Not Possible	Possible
Buttons Size and Workability of Soft switches (1-6 Gang)	Smaller, single side operation	Wider and Bigger with Both sides Operation
Panels Security not to be simple to remove from wall	Not Secure	Secured by Clamps, Magnets, and screw Locks
Metal Plate Twist and Screw Installation Simplicity	Not Possible	Possible
Design Standards	Asian Curved Design	Modern European Touch
Anti static Electricity Grounding and discharge	Not Part of Original Design	Embedded and Implemented in Design
Programming and Pairing Manually to Lighting, Dimming, HVAC, and Music	Not Possible	Easy
Flexible Fascia changing (many varieties)	Difficult, Very Thick	Easy
All Other Standard Smart-BUS Advanced Automation Features	Included	Included

Smart-Bus 6 Button Switch Wall Panel

Description

Elegant and easy to use wall panel that is soft programmed to enable control of lights, curtains, service++ the 6 Button switch has easy fascia color and material changing flexibility to help match any interiors. It has screw less mounting mechanism, security lock, easy upgrade mini-USB, re-locatable IR receiver probe, LED backlit buttons.
**Added function: Bigger buttons, Elegant aluminum surround and buttons, mini USB firmware upgrade port, easy connectors. Security lock screw to prevent vandalism, two sided button operation.

Control Compatibility
• Lighting
• Music
• Curtains
• Moods
• Security
• Service
• Color
• Drapes
• Pumps
• Gates

WHY G4 (GENERATION-4) IS BETTER? DDP, FDP, 6B, 4B, 3B

Switches and wall panels (Features compared)	Old Smart-BUS	New S-BUS G4
Buttons and Surround Finish Material Improvement	Plastic	Aluminum
Glass Material Improvement	Thick & Bulky	I Phone Quality 0.8mm Glass
Back Module Size	Do not Fit all Countries	Fits all countries
Upgrading without opening the Device	Not Possible	By Mini USB
Ability to Snap Connect/Disconnect Cables	Not Possible	Snap In Connector
Ability to Locate IR receiver nearer to user location	Not Possible	Flexible with Snap in Connector
PCB Electronics Design Complexity	2 Complex Boards	Single simple Board
User Graphics Interface	Standard	Improved Icons
Integration to Z-Audio with auto update	Manual	Advanced Auto
Fixed Display Panel (FDP)	Not Available	Available
Easy Backup and Restore using Configuration SW	Not Available	Available
Work on Both BUS and Cloud Technology	Not Possible	Possible
Buttons Size and Workability of Soft switches (1-6 Gang)	Smaller, single side operation	Wider and Bigger with Both sides Operation
Panels Security not to be simple to remove from wall	Not Secure	Secured by Clamps, Magnets, and screw Locks
Metal Plate Twist and Screw Installation Simplicity	Not Possible	Possible
Design Standards	Asian Curved Design	Modern European Touch
Anti static Electricity Grounding and discharge	Not Part of Original Design	Embedded and Implemented in Design
Programming and Pairing Manually to Lighting, Dimming, HVAC, and Music	Not Possible	Easy
Flexible Fascia changing (many varieties)	Difficult, Very Thick	Easy
All Other Standard Smart-BUS Advanced Automation Features	Included	Included

SMART-BUS DYNAMIC DISPLAY PANEL DDP EU WITH LCD

Description
All in one wall Switch, the DDP is an elegant and easy to use wall panel that eliminates wall agony. It has built in thermostat, changeable labels to identify every button use, can control lights, curtains, temperature, music, and TV. DDP has easy fascia color and material changing flexibility to help match any interiors. The DDP has screw less mounting mechanism, security lock, easy upgrade mini-USB, re-locatable IR receiver probe, LED backlit buttons and LCD screen. DDP can accept Multi languages, Icons and Graphics
**Added function: Bigger buttons, Elegant aluminum surround and buttons, mini USB firmware upgrade port, better Temperature sensor, easy connectors. Security lock screw to prevent vandalism.

Control Compatibilit
• Lighting
• Climate
• Music
• Curtains
• Moods
• Media
• Security
• Service
• Color
• Drapes
• Pumps
• Gates

WHY G4 (GENERATION-4) IS BETTER? DDP, FDP, 6B, 4B, 3B

Switches and wall panels (Features compared)	Old Smart-BUS	New S-BUS G4
Buttons and Surround Finish Material Improvement	Plastic	Aluminum
Glass Material Improvement	Thick & Bulky	I Phone Quality 0.8mm Glass
Back Module Size	Do not Fit all Countries	Fits all countries
Upgrading without opening the Device	Not Possible	By Mini USB
Ability to Snap Connect/Disconnect Cables	Not Possible	Snap In Connector
Ability to Locate IR receiver nearer to user location	Not Possible	Flexible with Snap in Connector
PCB Electronics Design Complexity	2 Complex Boards	Single simple Board
User Graphics Interface	Standard	Improved Icons
Integration to Z-Audio with auto update	Manual	Advanced Auto
Fixed Display Panel (FDP)	Not Available	Available
Easy Backup and Restore using Configuration SW	Not Available	Available
Work on Both BUS and Cloud Technology	Not Possible	Possible
Buttons Size and Workability of Soft switches (1-6 Gang)	Smaller, single side operation	Wider and Bigger with Both sides Operation
Panels Security not to be simple to remove from wall	Not Secure	Secured by Clamps, Magnets, and screw Locks
Metal Plate Twist and Screw Installation Simplicity	Not Possible	Possible
Design Standards	Asian Curved Design	Modern European Touch
Anti static Electricity Grounding and discharge	Not Part of Original Design	Embedded and Implemented in Design
Programming and Pairing Manually to Lighting, Dimming, HVAC, and Music	Not Possible	Easy
Flexible Fascia changing (many varieties)	Difficult, Very Thick	Easy
All Other Standard Smart-BUS Advanced Automation Features	Included	Included

Smart-Bus Simplified Hand Held IR Remote Control

Simplified Hand Held IR Remote Control 5 - SB-Remote5-HH - GTIN (UPC-EAN): 0610696254535

Description
Lighting, Dimming, Moods, Music, HVAC, Service, Security, Moods, Drapes ++ at easy push of a button at your sofa comfort. (Limited for G4 IR codes Only, not compatible with G3 old Gear).

Meeting Board Room Control Touch Panel

Description
Modified 15 Backlet Capacitive Touch Areas, to control Various Board Room Needs like: Temperature: (Cool, Cold, Warm) Presentation: (Start , Pause, End), Lights: (All on/Off,Meeting, Speech) , Curtain:(Open, Close, Stop, Media: (Source, Volume up/DN).

WHY G4 (GENERATION-4) IS BETTER? DDP, FDP, 6B, 4B, 3B

Switches and wall panels (Features compared)	Old Smart-BUS	New S-BUS G4
Buttons and Surround Finish Material Improvement	Plastic	Aluminum
Glass Material Improvement	Thick & Bulky	I Phone Quality 0.8mm Glass
Back Module Size	Do not Fit all Countries	Fits all countries
Upgrading without opening the Device	Not Possible	By Mini USB
Ability to Snap Connect/Disconnect Cables	Not Possible	Snap In Connector
Ability to Locate IR receiver nearer to user location	Not Possible	Flexible with Snap in Connector
PCB Electronics Design Complexity	2 Complex Boards	Single simple Board
User Graphics Interface	Standard	Improved Icons
Integration to Z-Audio with auto update	Manual	Advanced Auto
Fixed Display Panel (FDP)	Not Available	Available
Easy Backup and Restore using Configuration SW	Not Available	Available
Work on Both BUS and Cloud Technology	Not Possible	Possible
Buttons Size and Workability of Soft switches (1-6 Gang)	Smaller, single side operation	Wider and Bigger with Both sides Operation
Panels Security not to be simple to remove from wall	Not Secure	Secured by Clamps, Magnets, and screw Locks
Metal Plate Twist and Screw Installation Simplicity	Not Possible	Possible
Design Standards	Asian Curved Design	Modern European Touch
Anti static Electricity Grounding and discharge	Not Part of Original Design	Embedded and Implemented in Design
Programming and Pairing Manually to Lighting, Dimming, HVAC, and Music	Not Possible	Easy
Flexible Fascia changing (many varieties)	Difficult, Very Thick	Easy
All Other Standard Smart-BUS Advanced Automation Features	Included	Included
